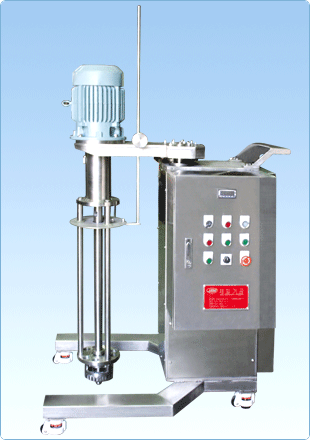

0~3600rpm 이상의 High Speed Emulsifier/Disperser
다양한 제품에 자유롭게 적용이 가능함.

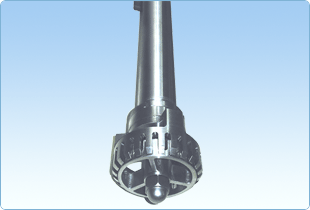

Rotor/Stator를 누구나 쉽게 교체할 수 있음.
기존 Flame에 다양한 Mixing 능력이 훨신 더
Upagrade 됐음.
최신 개발품으로 소음이 없고 고장이 없음.


JP.../2
Impacting
Shredding
Dissolving of resins		 JP.../3
Dispersing thickeners
Polymer emulsions
Resin melts		 JP.../4
Disagglomeration
Break down of thixotropes
Dissolving of swelling clumps
Additional circulation

JP.../5
Emulsification and suspension in
low viscosity range
All W/O emulsions
Pigment dispersion		 JP.../6
Dissolving of polymers
Dissolving of granulate
Impacting
Additional circulation		 JP.../7
Emulsification, suspension and
gassing
Micro dispersion
Dispersion of active agents in
the low viscosity range




Model

Max rpm Power Kw Max Qty

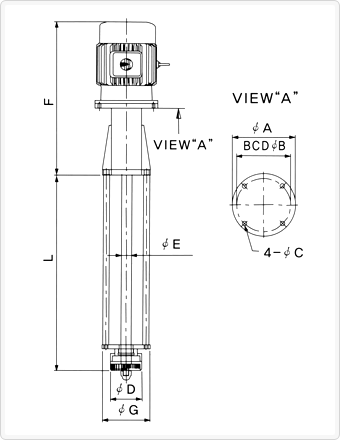

Liters H2O		 O.Dⓐ B.C.Dⓑ Holesⓒ Impellerⓓ Shaftⓔ Lengthⓕ Diaⓖ Shaftⓛ
HM JP5 80 3600 1.5 150 200 165 4-12 80 35 415 130 650
HM JP2 120
HM JP3 120
HM JP4 120
HM JP5 120
HM JP6 120
HM JP7 120		 3600
3600
3600
3600
3600
3600 		3.7
3.7
3.7
3.7
3.7
3.7 		500
500
500
500
500
400		 250
250
250
250
250
250 		215
215
215
215
215
215 		4-15
4-15
4-15
4-15
4-15
4-15 		120
120
120
120
120
120 		40
40
40
40
40
40 		520
520
520
520
520
520 		170
170
170
170
170
170 		1000
1000
1000
1000
1000
1000
HM JP2 150
HM JP3 150
HM JP4 150
HM JP5 150
HM JP6 150
HM JP7 150		 3600
3600
3600
3600
3600
3600 		7.5
11
11
5.5
7.5
5.5 		1500
1500
1700
1200
1500
1000 		300
350
350
300
300
300
265
300
300
265
265
265 		4-15
4-15
4-15
4-15
4-15
4-15 		150
150
150
150
150
150 		60
60
60
60
60
60 		610
610
610
610
610
610 		215
215
215
215
215
215 		120
120
120
120
120
120
HM JP2 220
HM JP3 220
HM JP4 220
HM JP5 220
HM JP6 220		 1800
1800
1800
1800
1800 		11
7.5
11
7.5
11 		2000
2000
2500
1500
2000 		350
300
350
300
350
300
265
300
265
300 		4-19
4-15
4-19
4-15
4-19		 220
220
220
220
220 		60
60
60
60
60 		800
800
800
800
800 		285
285
285
285
285 		120
120
120
120
120
HM JP3 275
HM JP4 275
HM JP5 275
HM JP6 275		 1800
1800
1800
1800		 19
19
15
19 		3000
3500
2500
2500 		400
400
350
400 		350
350
300
350

4-19
4-19
4-19
4-19

275
275
275
275 		70
70
70
70 		920
920
920
920 		350
350
350
350 		150
150
150
150
HM JP3 300
HM JP6 300
HM JP7 300		 1800
1800
1800		 30
30
30 		4000
4000
4000 		400
400
400 		350
350
350 		4-19
4-19
4-19 		300
300
300 		70
70
70 		980
980
980 		400
400
400 		150
150
150
